IupLuaScripterDlg (since 3.22)

Creates a Lua script developer dialog using the IupScintillaDlg dialog. It can edit, run and debug Lua scripts. The dialog can be shown with IupShow, IupShowXY or IupPopup. The dialog inherits from the IupScintillaDlg dialog.

Initialization and Usage

The IupLuaScripterDlgOpen function must be called after a IupOpen, so that the control can be used. The "iupluascripterdlg.h" file must also be included in the source code. The program must be linked to the controls library (iupluascripterdlg), with the iuplua library, with the iup_scintilla library, and with the Lua library.

To make the control available in Lua use require"iupluascripterdlg" or manually call the initialization function in C, iupluascripterdlglua_open, after calling iuplua_open.  When manually calling the function the iupluascripterdlg.h file must also be included in the source code and the program must be linked to the Lua control library (iupluascripterdlg).

The control itself and its Lua binding are implemented in the same library since both depends on iuplua and Lua. The dialog works for Lua versions 5.1, 5.2 and 5.3.

The iuplua library must be initialized before creating any instance of the IupLuaScripterDlg dialog.

Guide

Files can be open from the command line, from the File/Open menu, or from drag and drop from the system file manager.

All the IupScintillaDlg text processing are available. Additionally it provides a Lua menu, and 4 tabs in a panel bellow the text, with Console, Breaks, Debug and Watch interfaces.

The text editor has syntax highlight for the Lua language and autocomplete for Lua keywords. We use only the "KEYWORDS0" attributes other keywords are free for the application.

At the Console the user can type and enter Lua commands that are executed and printed in the output area. The Lua "print" command and the Lua "io.write" command are redirected to the output area, the previous definitions are saved as "print_old" and "write_old". All the commands entered in the Command Line are saved in a history list that can be accessed using the arrow up and arrow down keys. If the original functions are restored then only the command line output will be displayed in the output area.

Any Lua commands can be typed in the command line, but they must be a complete and valid sentence. If the sentence evaluates and return one or more results then the results are printed in the output area. For instance:

> x = 3     (sentence entered in the command line are also printed with a "> " prefix)
> x
3
> x + 4
7

Errors in the command line are displayed in the output (errors when running or debugging scripts are displayed in a separate window with more detailed information).

> x + y
Error: [string "return x + y"]:1: attempt to perform arithmetic on global 'y' (a nil value)

Multiple return values are also printed:

> z = 5
> x, z
3
5

Notice that the output of a value here is different from a regular "print", in the sense that strings, tables and functions have a special treatment.

> x = "test"
> x
"test"
> print(x)
test

and

> t = {33, "test2", x = 123}
> t
{
33,
"test2",
x = 123,
}
> print(t)
table: 0000023CCA058AC0

and

> f1
   [Defined in the file: "D:\tecgraf\iup\html\examples\Lua\scripter_test.lua" at line 18.]
> print(f1)
function: 0000024E6B4DF010

Breakpoints can be added by clicking the left margin in its most right area (the left area can has line numbers and bookmarks) or in the Breaks tab using the "Toggle Breakpoint" at the caret position or using the "Add" button and writing a filename and a line number. Breakpoints (and bookmarks) are saved in the application configuration file. When lines are removed or added, breakpoints position are automatically updated. But breakpoints are not restored in undo operations.

During the debug process, local variables of each stack level can be inspected in the Debug tab. The actual level is not changed when a Call Stack list level is selected, only its local variables are updated in the Locals list. The list supports 3 types of local variables: variables declared as "local" and function parameters; Vararg parameters; and Upvalues (external local variables). Varargs don't have names, so we list them as if a table called "vararg" was created and each element of the table is listed separately. Upvalues are listed last with a ":: " prefix, used simply to distinguish them from the other variables. For now, a local variable can be changed only if it is a boolean, string or a number. Variable arguments (vararg) are displayed only for Lua version 5.2 or newer. (Vararg and Upvalues since 3.23)

When printed, locals or stack, it display also some debug information:

l_main_x = 43 (pos=1)
43

and

f1, at line 22 (level=1)
    [Defined in the file: "D:\tecgraf\iup\html\examples\Lua\scripter_test.lua" at line 18]

These values (level and pos) can be used in the functions "debug.getinfo(level, flags)" or "debug.getlocal(level, pos)" to obtain more information. But level is a relative stack level number, the actual stack level must be calculated depending on the situation you are going to it. Inside the command line you must add 6 levels.

You can execute code in the console command line while the debug is paused.

To debug event driven scripts, press Alt key before starting to debug the script. This will disable the automatic end of debugging when the script is fully executed. The debugging will remain active until it is stopped. (since 3.23)

During debug error management allows to pause the debugger at the error, so you can inspect variables and the stack. (since 3.23)

Lua code that are run from strings, instead of files, can also be debugged. But you can only set breakpoints when you step in the string and its contents are displayed in a new document. This temporary document is automatically closed when the debug is ended. (since 3.23)

During the debug, the list of global variables or expressions in Watch is also updated with the respective values. When not in debug the list contains only the text of the variables or expressions to be watched. (since 3.23)

When a Project is used all Lua parameters and breakpoints are saved in the project file instead of the global configuration file. (since 3.23)

To Do's

Creation

Ihandle* IupLuaScripterDlg(void); [in C]
iup.luascripterdlg{} -> (elem: ihandle) [in Lua]
luascripterdlg() [in LED]

Returns: the identifier of the created element, or NULL if an error occurs.

Attributes

Supports all the IupDialog and IupScintillaDlg attributes.

Callbacks

Supports all the IupDialog and IupScintillaDlg callbacks.

Notes

The dialog can be freely customized to incorporate other menu items or controls.

Examples

int main(int argc, char **argv)
{
  Ihandle *config;
  lua_State *L;
  Ihandle *menu;
  Ihandle *main_dialog;
  int i;

  L = luaL_newstate();
  luaL_openlibs(L);

  createargtable(L, argv, argc);  /* create table 'arg' */

  iuplua_open(L);
  IupLuaScripterDlgOpen(L);

  IupSetGlobal("GLOBALLAYOUTDLGKEY", "Yes");

  config = IupConfig();
  IupSetAttribute(config, "APP_NAME", "iupluascripter");
  IupConfigLoad(config);

  main_dialog = IupLuaScripterDlg();

  IupSetAttributeHandle(main_dialog, "CONFIG", config);
  IupSetAttribute(main_dialog, "SUBTITLE", "IupLuaScriter");

  menu = IupGetAttributeHandle(main_dialog, "MENU");
  IupAppend(menu, IupSubmenu("&Help", IupMenu(
    IupSetCallbacks(IupItem("&Help...", NULL), "ACTION", (Icallback)item_help_action_cb, NULL),
    IupSetCallbacks(IupItem("&About...", NULL), "ACTION", (Icallback)item_about_action_cb, NULL),
    NULL)));

  /* show the dialog at the last position, with the last size */
  IupConfigDialogShow(config, main_dialog, "MainWindow");

  /* open a file from the command line (allow file association in Windows) */
  for (i = 1; i < argc; i++)
  {
    const char* filename = argv[i];
    IupSetStrAttribute(main_dialog, "OPENFILE", filename);
  }

  IupMainLoop();

  IupDestroy(config);
  IupDestroy(main_dialog);

  IupClose();

  lua_close(L);
  return EXIT_SUCCESS;
}

Paused while Debugging

Command line and Output

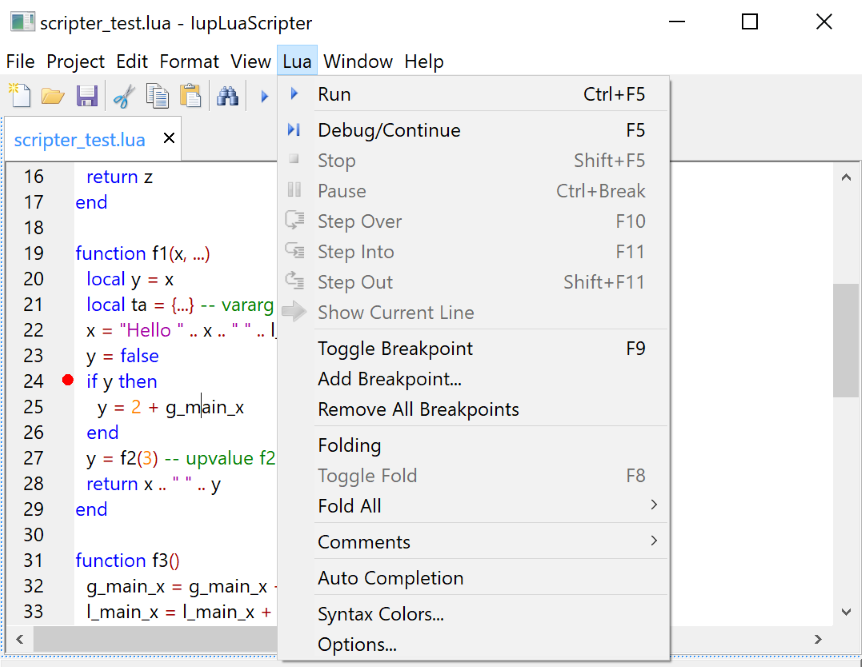

Menus and Breakpoints

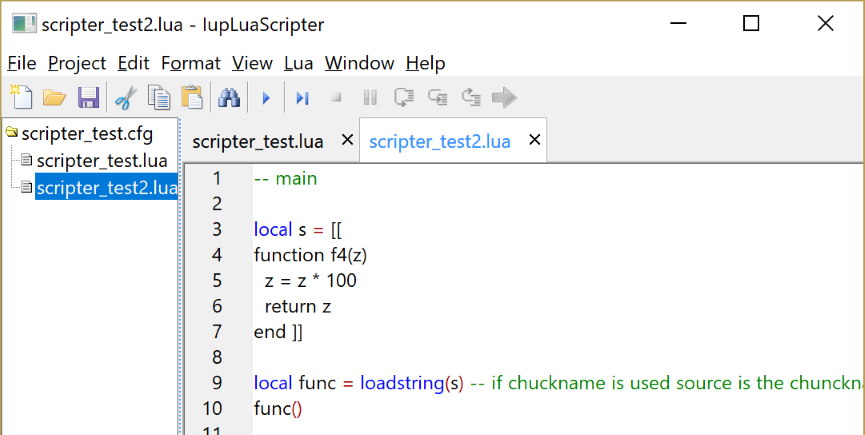

Project Files

Console Tab & Debugger Tabs Modules (since 3.25)

The Console Tab and the Debugger Tabs can be used as independent modules in another application dialog. The library must be initialized in the same way by calling IupLuaScripterDlgOpen in C or by calling require"iupluascripterdlg" in Lua. After that the module are ready to be used.

The Console module is used by calling iup.ConsoleCreate(panelTabs) to create the console tab. panelTabs is a IupZbox, IupTabs or IupFlatTabs where the console will be inserted.

The  Debugger Tabs module is used by calling iup.DebugCreate(panelTabs, multitextTabs) to create the breakpoints tab, the locals/stack tab and the watch tab. multitextTabs is a IupZbox, IupTabs or IupFlatTabs where each IupScintilla that contains a source file is located. The panelTabs and the multitextTabs must already be inserted in the application dialog. Additionally the application can also call iup.DebuggerAddToolbarButtons(toolbar) to add toolbar buttons for debugging, call iup.DebuggerAddMenuItems(lua_menu) to add menu items for debugging, and call iup.DebuggerAddHotKeys(ih) to add the debugging hot keys, all the same as in the IupLuaScripterDlg.

But the Debug Tabs module has a few constrains:

- There must be a container (IupTabs, IupFlatTabs or IupZbox) with several IupScintilla controls as children to contains the source codes being debugged. Margins 2, 3 and 4 are used for debugging. Each IupScintilla should have its file name in the FILENAME attribute if it is associated with a file.

- The list of global variables to be watched and the list of breakpoints are stored by the application. After preparing the list with the FILENAMEi and LINEi attributes, call the iup.DebuggerInitBreakpointsList() function to initialize the list. The process for the the globals are similar but involves more calls to Lua, additionally to the call to iup.DebuggerInitGlobalsTree() at the end. See the "iupluascripterdlg.c" for more details. In the IupLuaScripterDlg the lists and parameters are stored in a IupConfig configuration file, but both modules are independent of the configuration file, so the application is responsible for saving and restoring the lists.

- Some features are dependent on IupScintillaDlg attributes. These attributes are isolated in several functions in "debugger.lua", to remove the IupScintillaDlg dependency these functions must be re-defined in Lua. Such as: iup.DebuggerNewFile, iup.DebuggerOpenFile, iup.DebuggerForceCloseFile, iup.DebuggerUpdateTitle, iup.DebuggerSaveFile and iup.DebuggerToggleMarker.

Other functions of both modules are available directly in Lua. Take a look of the IupLuaScripterDlg code in the folder "iup/srclua5/scripter", more specifically the "console.lua" and "debugger.lua" modules.

See Also

IupScintilla, IupDialog, IupScintillaDlg
